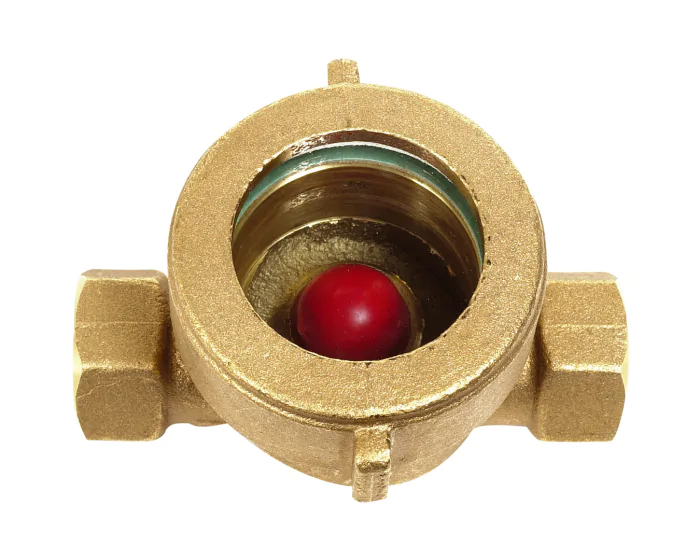

This controller is particularly suitable for low pressure and low temperature media. Body in cast brass CB 754 S, tempered glass, PS: 16bar, PS: 80°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 97.0 |
| Gasket | Fibre x 2 |
| Body material | Brass CB 754S |
| PS (bar) | 16 |
| Connections | BSP FF |
| TS max (°C) | 80 |
| TS min (°C) | 5 |
| Sight glass type | With ball |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CB 754S DN15 - 1/2'' | 221104 | S1013383 |
€82.34
(excl. btw)
|
add to cart |
| BSP FF Brass CB 754S DN20 - 3/4'' | 221105 | S1013384 |
€93.61
(excl. btw)
|
add to cart |
| BSP FF Brass CB 754S DN25 - 1'' | 221106 | S1013385 |
€102.86
(excl. btw)
|
add to cart |
